Door Hardware Accessories - Hinge
SNS2DL33GL
SNS2DR33SL
SNS2DL33U2

Product Name
Item No.
Cover
Color
Hinge R
SNS2DR33
Painting
GL(Gold),SL(Silver),U2(Brown)
Hinge L
SNS2DL33
Painting
GL(Gold),SL(Silver),U2(Brown)

33mm is the thickness of door. Recommended weight of door is below 40KG

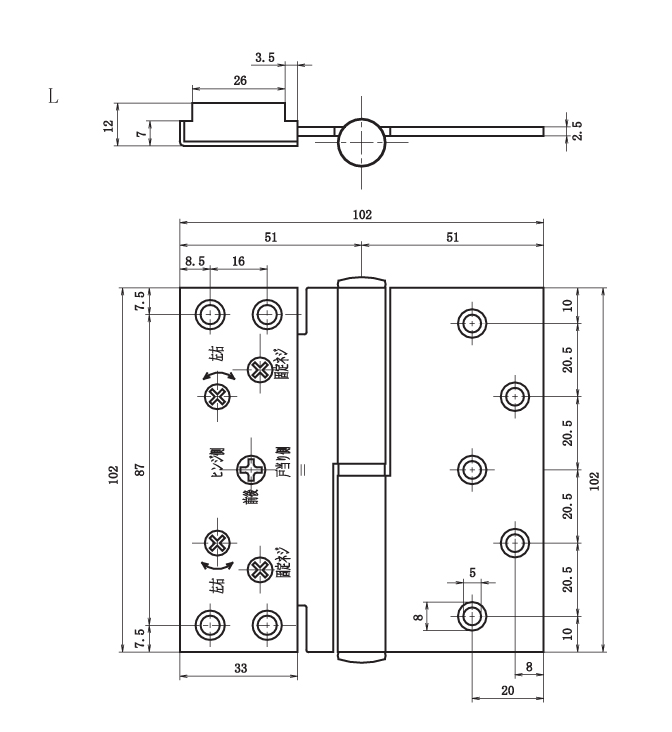

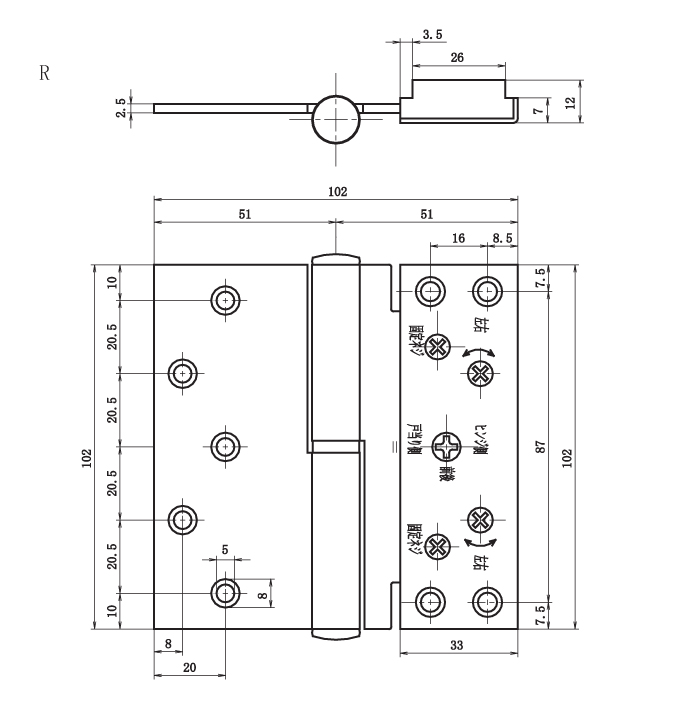

Dimension

















Drawing

Installation

1. Fix the hinge in the slot of the frame
2. Align the axis of the lower hinge with the hole as showed in the guide (no insertion). Align the upper hinge with the hole and insert it in the hole.

Adjustment value and adjustment of hinge


Forward and backward adjustment value

-2 - 2mm

Left and right adjustment value

-2 - 2mm

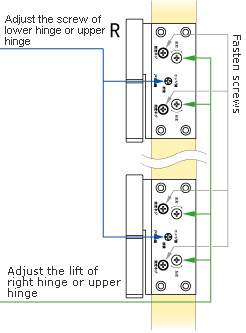

If the cases below happen, you can adjust the hinge with a screwdriver.
Loosen screws before the adjustment and fasten screws after the adjustment.

1.While it leans






Adjustment accomplished





2.◊ů”“«„–Ī Ī
